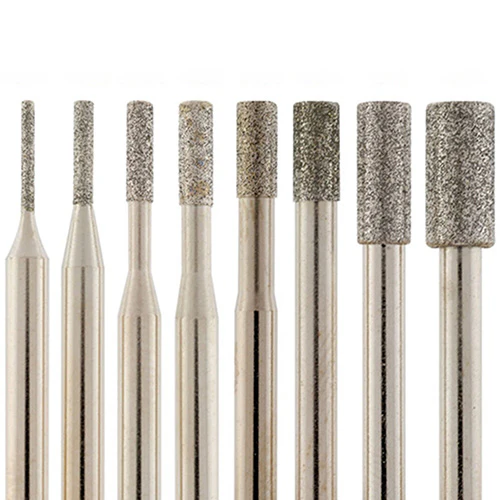

These high-quality, durable cutting tools feature diamond particles nickel-electroplated onto medium carbon steel. Use on carbide, steel, ceramic and wood surfaces. Measure 1-3/4" long with 1/8" shanks.

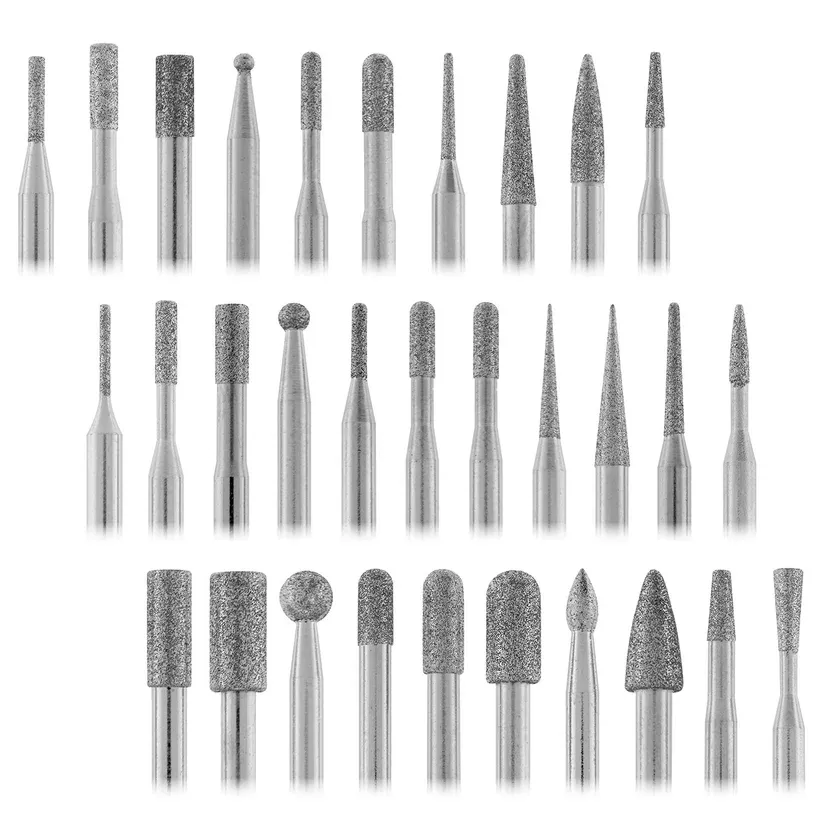

- 30-Piece Set contains one of each style.
| Style# | Shape | Dia. x
Length (mm) | Grit | Max.
RPM |
| 10A | Cylinder | 1 x 8 | 150 | 80,000 |
| 15A | Cylinder | 1.5 x 8 | 150 | 80,000 |
| 20A | Cylinder | 2 x 8 | 120 | 80,000 |
| 25A | Cylinder | 2.5 x 8 | 120 | 80,000 |
| 30A | Cylinder | 3 x 10 | 120 | 80,000 |
| 35A | Cylinder | 3.5 x 10 | 120 | 60,000 |
| 40A | Cylinder | 4 x 10 | 120 | 60,000 |
| 50A | Cylinder | 5 x 10 | 120 | 50,000 |
| 20B | Round | 2 x 2 | 120 | 80,000 |
| 30B | Round | 3 x 3 | 120 | 80,000 |
| 50B | Round | 5 x 5 | 120 | 50,000 |
| 15C | Rounded Cylinder | 1.5 x 8 | 150 | 80,000 |
| 20C | Rounded Cylinder | 2 x 8 | 120 | 80,000 |
| 25C | Rounded Cylinder | 2.5 x 10 | 120 | 80,000 |
| 30C | Rounded Cylinder | 3 x 10 | 120 | 80,000 |
| 35C | Rounded Cylinder | 3.5 x 10 | 120 | 60,000 |
| 40C | Rounded Cylinder | 4 x 10 | 120 | 60,000 |
| 50C | Rounded Cylinder | 5 x 10 | 120 | 50,000 |
| 20F | Bullet | 2 x 10 | 120 | 80,000 |
| 30F | Bullet | 3 x 10 | 120 | 80,000 |
| 50F | Bullet | 5 x 10 | 120 | 50,000 |
| 20P | Point | 2 x 12 | 120 | 80,000 |
| 30P | Point | 3 x 15 | 120 | 80,000 |
| 15R | Rounded Point | 1.5 x 10 | 150 | 80,000 |
| 20R | Rounded Point | 2 x 12 | 120 | 80,000 |
| 30R | Rounded Point | 3 x 14 | 120 | 80,000 |
| 30S | Flame | 3 x 6 | 120 | 80,000 |
| 20T | Blunt Taper | 2 x 10 | 120 | 80,000 |
| 30T | Blunt Taper | 3 x 10 | 120 | 80,000 |
| 30V | Inverted Cone | 3 x 10 | 120 | 80,000 |
| Bur Diameter | Assorted |
| Bur Material | Diamond |
| Bur Shape | Assorted |
| Country of Origin | Taiwan |
| Diamond Grit | Assorted |
| Item Length | 1-3/4" |
| Max RPM | Assorted |
| Package Size | Set of 30 |
| Shank Size | 1/8" |
