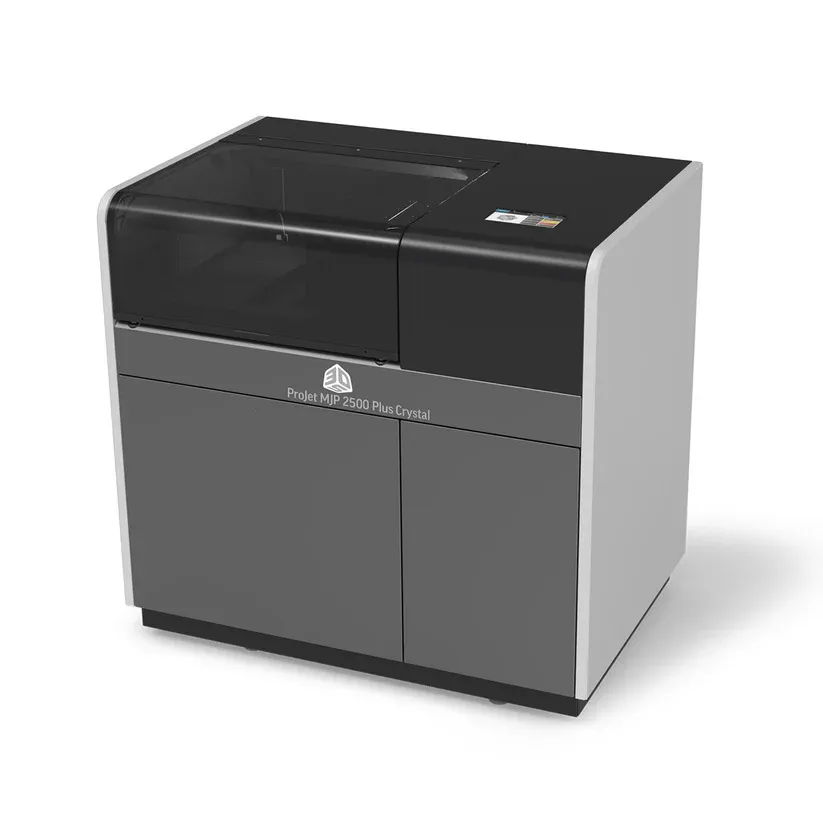

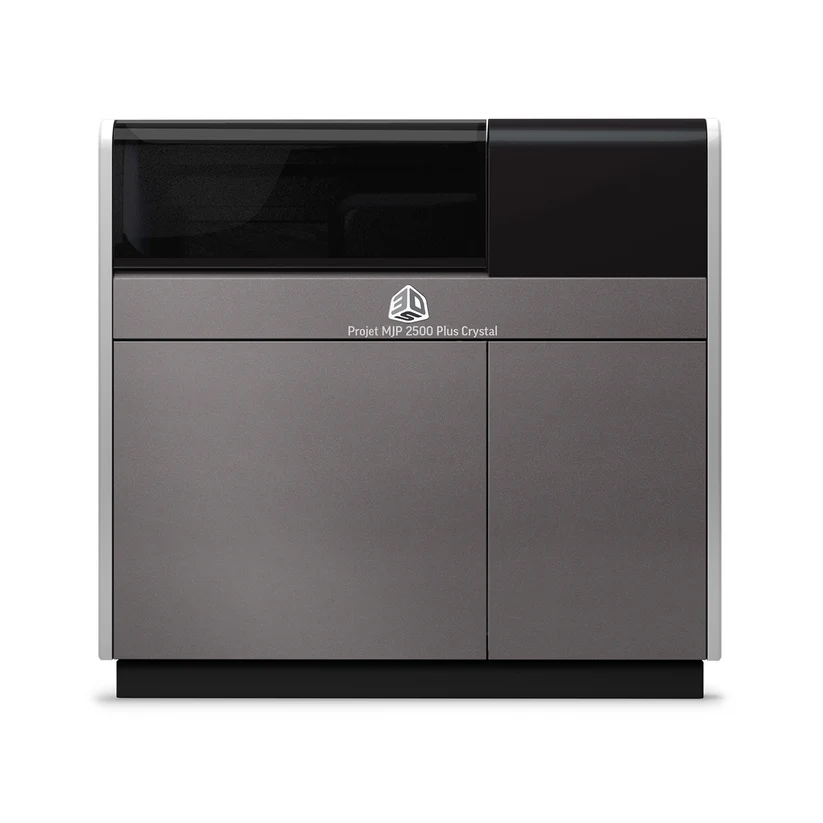

The ProJet MJP 2500 Plus delivers high-fidelity parts with exceptional speed and accuracy using MultiJet Printing (MJP) technology. It offers an effective file-to-finished-part process, making it an excellent choice for prototyping, design validation, and low-volume production.
Key Benefits
- Get more parts faster with an efficient file-to-finished-part process
- Create high-fidelity parts you can rely on
- Exceptional sharp edges and fine feature definition
- Greater geometric freedom with easy, hands-free support removal
- Choice of rigid plastic and elastomeric materials engineered for performance
- Low Total Cost of Ownership (TCO)
Technical Specifications
| Specification | Details |
|---|
| Build Volume (W x D x H) | 44.1 x 29.1 x 42.1 in (1120 x 740 x 1070 mm) |
| 3D Printer Weight | 465 lb (211 kg) |
| Internal Hard Drive | 500 Gb minimum |
| Resolution | HD Mode: 800 x 900 x 790 DPI; 32 µ layers |
| UHD Mode: 1600 x 900 x 790 DPI; 32 μ layers |
| Build Materials | VisiJet M2 Series (rigid, engineering-grade, elastomeric) |
| Support Material | M2 SUW – Hands-free dissolvable wax supports |
| Accuracy (typical) | ±0.004 in per inch (0.025 - 0.05 mm per 25.4 mm) |
| Electrical | 100-127 VAC, 50/60 Hz, single-phase, 15A |
| 200-240 VAC, 50/60 Hz, single-phase, 10A |
| Brand | ProJet® |
| Country of Origin | United States of America |
