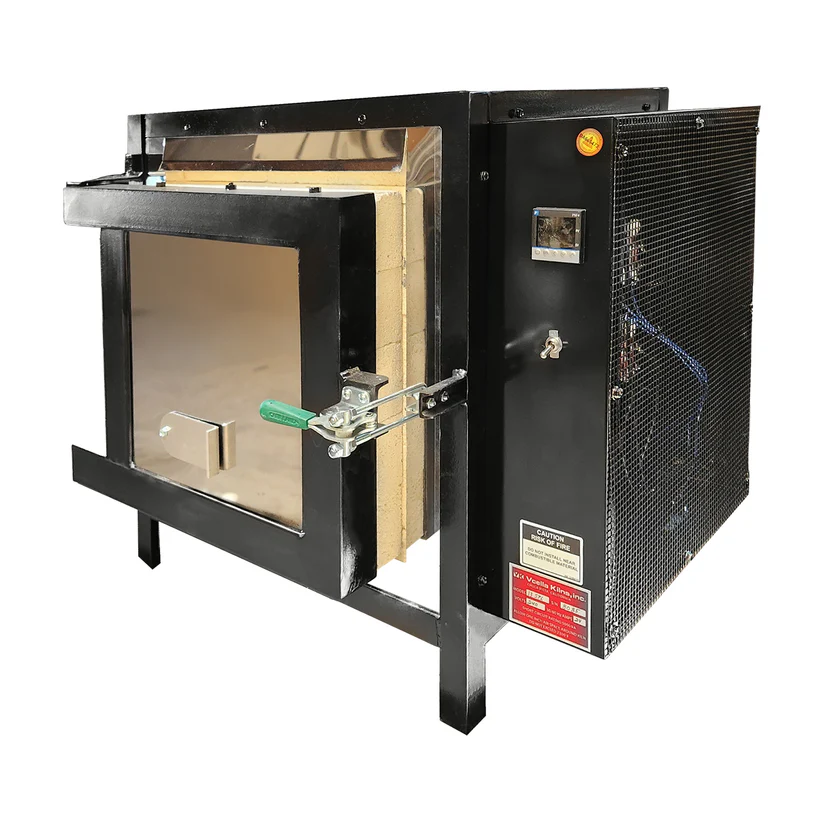

The Vcella burnout kiln features a spacious 13x13x13" interior chamber, capable of holding up to 8 solid 4"x6" flasks or 6 flanged 4"x6" flasks. Built in America, it offers a reliable continuous 2300°F rating, making it an excellent choice for demanding burnout and casting applications. All Vcella kilns are front-loading with a convenient left-hand opening door. They include infinite switches, pilot lights, a vent hole, controller and a 6-foot power cord.
Key Features
- Stainless steel case with heavy-duty angle iron frame
- 2300°F insulating fire brick interior walls
- Solid block 2000°F backup insulation
- 4-inch highly efficient insulation for safe exterior temperatures
- Plug-style door to minimize heat loss
- Heavy-duty hinges and solid arch plate
Technical Specifications
| Specification | Details |
|---|
| Overall Dimensions (W x D x H) | 26" x 23" x 25" |
| Chamber Dimensions (W x D x H) | 13" x 13" x 13" |
| Max Flask Capacity (Solid) | Up to 8 flasks (4"x6") or 28 flasks (3"x3") |
| Max Flask Capacity (Flanged) | Up to 6 flasks (4"x6") or 21 flasks (3"x3") |
| Max Temperature | 2,300°F continuous |
| Electrical | 240V, 36A, 8,640 Watts |
