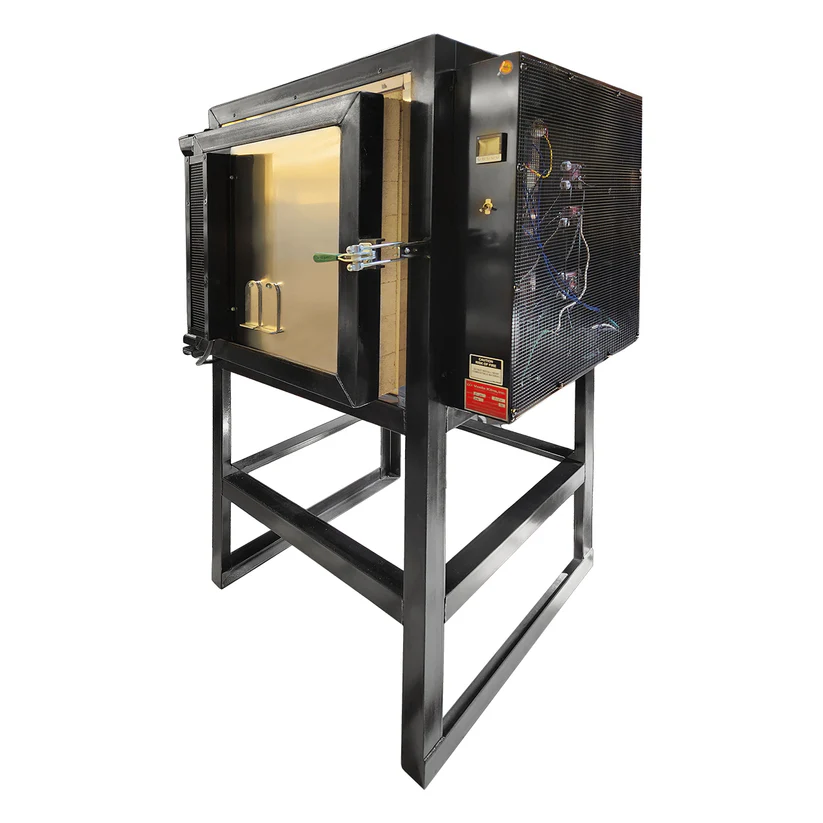

The Vcella B-20 features an extra-large 20x20x20" interior chamber, allowing you to streamline production by firing significantly more flasks per load. Built in America, this robust kiln delivers a reliable continuous 2300°F rating, making it ideal for demanding burnout and casting applications. All Vcella kilns are front-loading with a convenient left-hand opening door. They include infinite switches, pilot lights, a vent hole, controller, and a 6-foot power cord for easy setup and operation.
Key Features
- Stainless steel case with heavy-duty angle iron frame
- 2300°F insulating fire brick interior walls
- Solid block 2000°F backup insulation
- 4-inch highly efficient insulation keeps exterior walls safe to touch
- Plug-style door minimizes heat loss
- Heavy-duty hinges prevent sagging
- Solid arch plate prevents brick dust from contaminating wares
Technical Specifications
| Specification | Details |
|---|
| Overall Dimensions (W x D x H) | 33" x 30" x 45" |
| Chamber Dimensions (W x D x H) | 20" x 20" x 20" |
| Max Flask Capacity (Solid) | Up to 36 flasks (4"x6") or 100 flasks (3"x3") |
| Max Flask Capacity (Flanged) | Up to 27 flasks (4"x6") or 75 flasks (3"x3") |
| Max Temperature | 2,300°F continuous |
| Electrical | 240V, 36A, 8,640 Watts |
