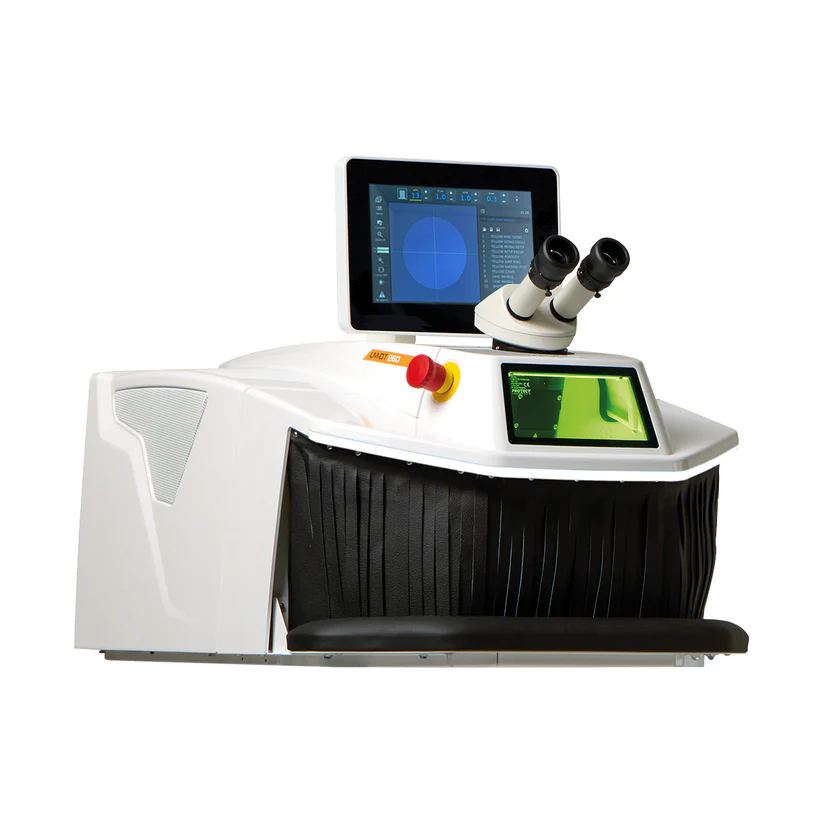

Sisma LM-DT 260 Flex Laser Welder

Desktop laser welding system equipped with a wide, flexible entry point, Lecia stereo 10X microscope with optical protection, 10.1" HD touchscreen display and is argon ready.  Laser welder comes with a water-air cooling system, both air and argon connections, a filter for processing vapor and reclaiming precious metals as well as a protective cloth.  Average power 95W, max pulse energy of 260 Joules, peak power 10.5 kW.   Warranty 24 months or 20 million shots on the lamp, 36 months on the balance of the machine.  All consumables are not included in the guarantee.

Key Features of the LM-DT 260 Flex Laser Welder:

• Easy access to the working chamber
• Smart Spot technology maintains stable energy output delivering identical welds from the first pulse to the last
• Spot diameter 0.2-2 mm
• Pulse duration 0.5-25 ms
• Leica Stereo 10X microscope with optical protection (optional 16X and 25X lenses are also available)
• Touchscreen 10.1” HD
• Integrated high resolution coaxial camera with patented Syncro View system displays on the screen, exactly what you see through the scope
• LED bar for optical indication of the machine operating status
• Adjustable white LED light allows easy modifications to improve clarity or reduce glare
• Quick setting of welding parameters by means of the multifunctional mouse - can save up to 250 for future use
• USB Connection / Ethernet / TeamViewer included to simplify and allow remote diagnostic capability

 The laser welder comes complete with:

• A water-air cooling system
• Both air and argon connections
• A filter for dust recovery
• A protective cloth.
