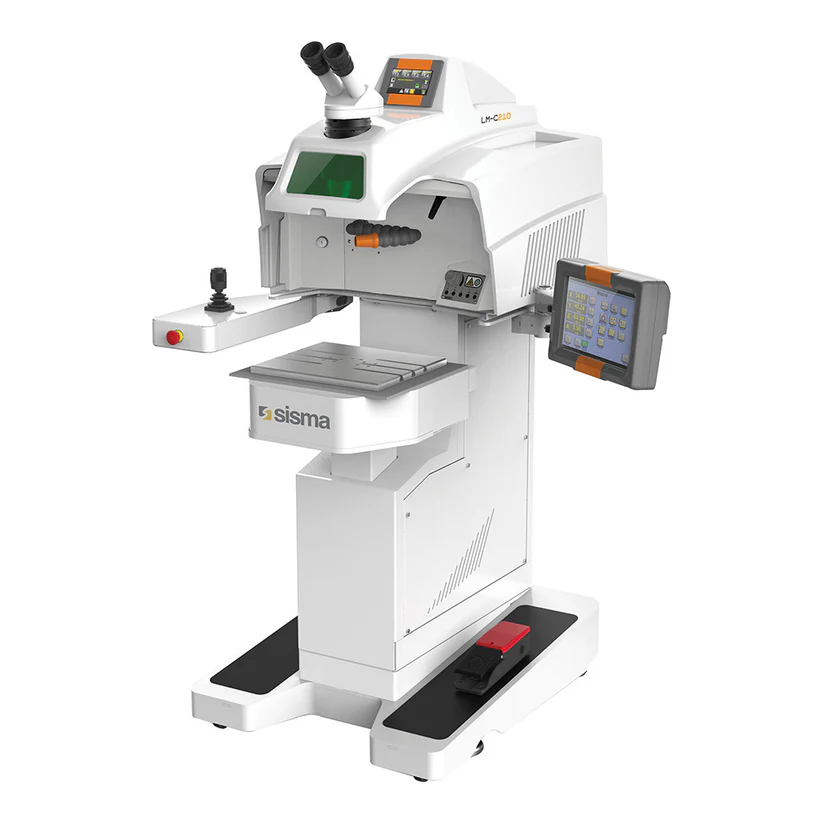

These high precision Nd: YAG (Class 4 open) laser welders are designed for small molds, 11.75" x 11.75" (300mm x 300mm) under 55 lbs. Featured characteristics are ease of use, reduced maintenance, and precise movement along the X, Y, and Z axes. All versions have Smart Spot technology, which yields a greater depth of field and a stable laser shot starting from the first pulse. Included ECO Mode saves energy by switching off unused components during idle times, thereby reducing power consumption.
The LM-C and LM-CV both allow the motorized working platform to be programmed for automatic, consistent results or controlled via joystick when preferred. The LM-C offers the 10X stereo microscope while the LM-CV features the patented Syncro View System for a fluid and stress-less view of work during welding.
All units are made in Italy. Backed by a one-year manufacturer's warranty. Installation, training, and service provided by Gesswein.
Key Features:
- Designed for Small Molds
- Motorized Control of X, Y, and Z Axes
- Fast Setting of Welding Parameters (via Keyboard)
- Internet Connection for Remote Service Management and Free Upgrades
Technical Data | LM-C 180 |
Item #: | 833-1850 |
Source Type: | Nd: YAG (flash lamp) |
Wavelength: | 1064 nm |
Average Laser Power: | 80W |
Peak Power: | 9kW |
Pulse Frequency: | 0-50Hz |
Max Pulse Energy: | 180J (at 20ms) |
Pulse Duration: | 0.3ms - 20ms |
Laser Spot Diameter: | 0.2 - 2mm |
Axis Speed: | 0.1mm/s - 15mm/s |
X Axis Stroke: | 5.9" (150mm) |
Y Axis Stroke: | 5.9" (150mm) |
Z Axis Stroke: | 6.9" (175mm) |
Cooling: | Water & Air |
Max Load Weight: | 55lbs. (25kg) |
Max Mold Size (LxWxH): | 11.8" x 11.8" x 10.6" (300 x 300 x 270mm) |
Power Supply: | 230V±10%, 1 Ph, 50/60Hz |
Dimensions (LxWxH): | LM-C: 44.7" x 31.5" x 57.7" (1136 x 801 x 1465mm) |
Weight: | 441 lbs. (200kg) |
Established in 1961, Sisma is a worldwide recognized name for the design and production of extremely high precision laser machinery. Suiting the needs of diverse industries; jewelry, machining, prototyping, dental, and medical, Sisma’s expansive line of customizable laser solutions are synonymous with quality and superiority. Innovative by vocation, Sisma combines technologically advanced machines with unique patents. When coupled with a world class service and support network, optimal efficiency and utilization of their products are guaranteed.
