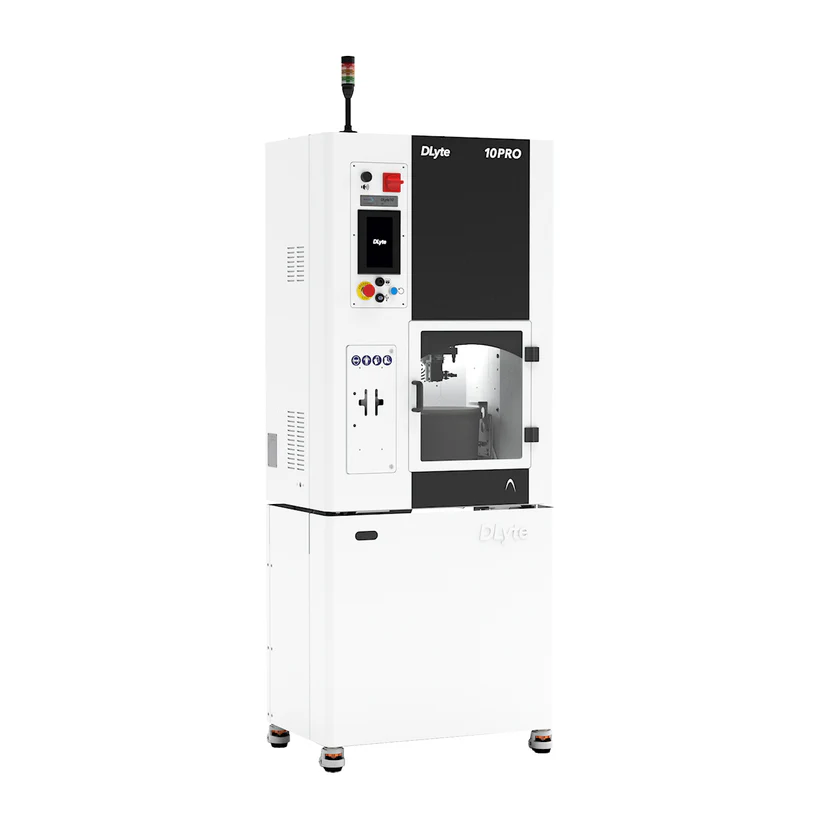

DLyte 10PRO metal surface finishing equipment uses the dry electropolishing technology, suitable for companies with medium manufacturing volume. It combines a planetary movement and a vertical back-and-forth motion inside the drum containing the electrolyte media. It is suitable for steel, cobalt-chrome, titanium, copper-based, nickel-based and aluminum materials. Its advanced PLC-based electronics allows to apply asymmetric pulses with low and high frequency, and parameter concatenation. Used for precision finishing, smoothing, mirror finishing, deburring, rounding, corrosion resistance and AM post processing. Light tower, anti-vibration support, conductivity and temperature calibration system are included. Work bowl and holder are not included.
Specifications:
Capacity (per cycle): 140mm Diam. x 75 mm (approx. 3.5" in diameter x 2.75")
Overall Dimensions: (W x D x H) 900 x 1100 x 2260 mm (approx. 35-1/2" x 43-1/2" x 89")
Machine Dimensions (W x D x H) 900 x 1100 x 1470 mm (approx. 35-1/2" x 43-1/2" x 58")
Support Dimensions 900 x 11005 x 790 mm (approx. 35-1/2" x 43-1/2" x 31")
Overall Weight: 238 kg. (523.6 lbs.)
Machine Weight: 174 kg (382.8 lbs.)
Support/Base Weight: 64 kg (140.8 lbs.)
Electrical: 220V - 240V, 3 kW (single phase with industrial plug) 50-60 Hz
Air pressure 4-5 bar (air connector: 8mm Ø or 1/4’ BSP’)
Air consumption: 40 l/min. The air quality must be 1.5.1* according to ISO 8573. *Air quality required for a maintenance every 6 months (change of filters).
Distilled water tank capacity: 3 l (drain valve and external antisabotage value included)
Noise level: <70 dB(A)
HMI size: 7”
| Brand | DLyte |
| Country of Origin | Spain |
| Electrical | 230V, 1 Ph, 50/60Hz |
