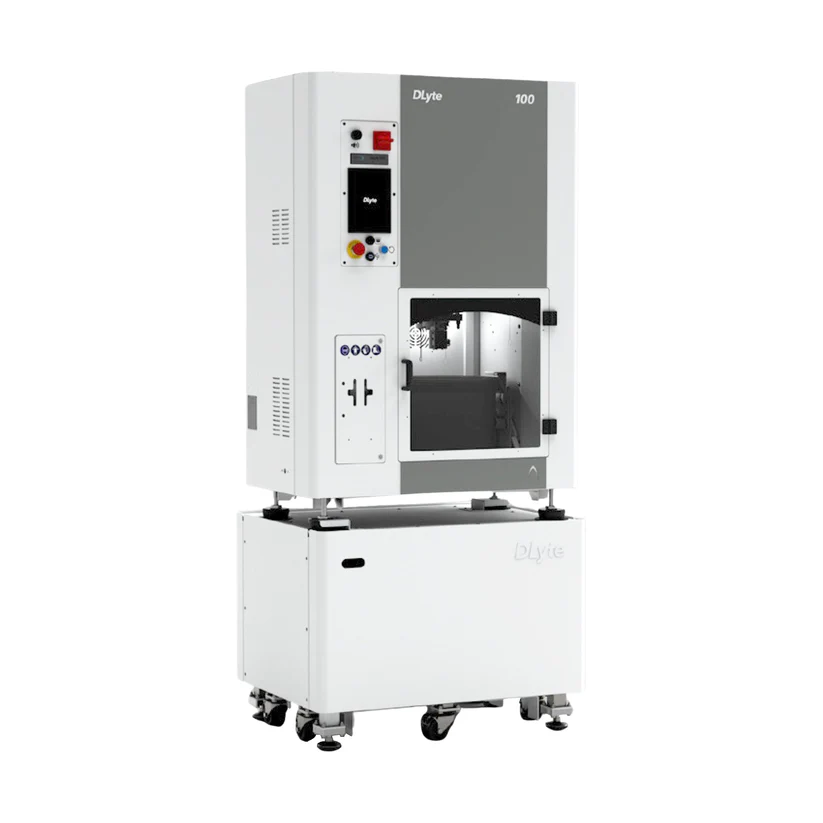

DLyte 100 Standard Dry Electropolisher

DLyte 100 is a metal surface finishing equipment using dry electropolishing technology for companies with medium to large production. It is specially designed to treat high-value, small, fragile and delicate parts that require high-demanding finishing requirements and R&D purposes. Its one-step, automatic process reduces the complexity of current multi-step finishing processes, while improving cost efficiency and repeatability. This machine does not require a system to recycle water and sludge waste treatment machinery, therefore

saving space, labor, and environmental licenses for waste management. It is suitable for pieces with a working volume capacity of 180 Ø mm x 80 mm and a maximum weight of 5 kg.   Compatible with Steel, Cobalt-chrome, Copper-based alloys, and Nickel-based alloys using Low Frequency parameters.  Anti-vibratory system and Holder Checking Tool are included. Cathode set and holder are not included.

Features:

• Accommodates parts with a working volume capacity of 180Ø mm x 80 mm and a maximum weight of 5 kg
• Metal surface finishing machine using dry electropolishing technology, suited for companies with medium to large production volumes
• Designed for high-value, small, fragile, and delicate parts with demanding finishing requirements
• One-step automatic process simplifies traditional multi-step finishing workflows, improving cost efficiency and repeatability

Specifications:

• Capacity (per cycle) 180 Ø x 80mm (maximum volume centered to the axis)
• Machine Dimensions (L x W x H) 950 x 745 x 2105 mm (approx. 37.4" x 29.4" x 82.9")
• Total weight: 318 kg. (699.6 lbs.)

Machine Weight 250 kg (550lbs.)

Support Weight 68 kg (149.6 lbs.)

• Electrical: Voltage 220 V - 240 V*, 3.5 kW (single phase with industrial plug)
• Air Pressure 4-5 bar (air connector: 8mmØ or 1/4’ BSP’)
